Product Details:
|
| Name: | Pigeon Cage FRP Grille | Color: | Red ，green，blue Etc. |
|---|---|---|---|
| Material: | FRP | Origin Area: | Anping Hebei China |
| Size/piece: | 1.0m*3.0m | Grid Hole: | 38mm*38mm*38mm |
| Transportation: | Overseas Shipping | Packing Standard: | Standard Sea Shipping Package |
| High Light: | FRP Molded Grating Grille,fiberglass FRP Molded Grating,FRP fiberglass molded grating |
||

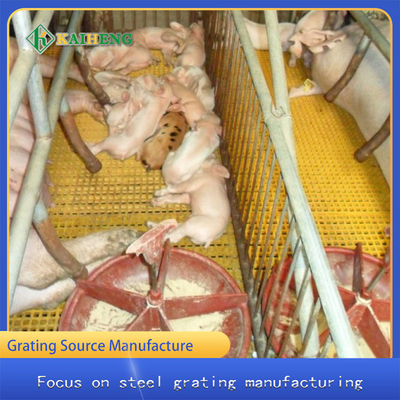

The FRP grid for pigs and dogs is made of high-strength glass fiber and resin. It is a polymer plastic plate with grid hole piles. In addition to carrying feces leakage at the bottom of the cage, it is also widely used in other fields. Because the FRP grid has rich physical and chemical properties, low price, light structure, heavy bearing, aging resistance and flame retardancy, it has excellent performance. It is used to lay the bottom of the cage for raising pigs and dogs. It can lie on it to rest and sleep. It is resistant to the corrosion of animal urine.
| name | FRP grating for pig bearing |
| color | yellow,red,white,grey,blue,green |
| material | frp |
| performance | Bearing pressure, corrosion resistance and leakage |
| application | Laying at the bottom of poultry and animal cages |
| standard | ISO9001:2015 |
| size(m) | 4.04*1.22, 3.66*1.22 ,2.44*1.22 or customized |
| grid hole size(mm*mm) | 38*38,19*19,12*12,50*50,or customized |
| origin | Anping,Hebei,China |
| transportation | shipping |
The breeding industry will make cages for breeding animals and poultry. This kind of FRP grid plate has excellent physical properties such as corrosion resistance, high strength, high hardness, compression resistance, wear resistance, flame retardant insulation and so on. For the construction of cages for raising pigs or dogs and poultry, in order to facilitate the leakage of animal feces and maintain the sanitation of cages, FRP grid plate is a good choice. It except
Corrosion resistance
It has excellent corrosion resistance to acid, alkali, organic solvents, salts and many other gas and liquid media, and has incomparable advantages in the field of anti-corrosion. According to the requirements of actual application occasions, o-benzene, m-benzene and vinyl resins can be economically selected as matrix materials.
Light weight, high strength, and easy to cut and install
Because it is made of resin and glass fiber, its density is small, no more than 2kg per cubic decimeter, only 1 / 4 of steel and 2 / 3 of aluminum. Its strength is 10 times that of rigid PVC, and its absolute strength exceeds that of aluminum and ordinary steel. Its self weight is light, which can greatly reduce the foundation support, thus reducing the material cost of the project. It is easy to cut and install, without hot work and large lifting equipment, and only a small amount of manual and electric tools, which greatly reduces the installation cost.
Aging resistance
Theoretically, the service life is more than 20 years.
Flame retardant
The flame propagation rate of ordinary flame retardant grille (ASTM E-84) shall not exceed 25; The flame propagation rate of advanced flame retardant vinyl grille shall not exceed 10. The oxygen index shall not be less than 28 (GB 8924).
Security
It has excellent electrical insulation and no breakdown under 10KV voltage; It has no electromagnetism and can be used on magnetic sensitive equipment; The special structure of FRP grid also has the characteristics of anti-skid and anti fatigue.
colour
Colors can be selected at will. Can customize colors according to customer requirements and improve the environment of production sites. The general colors of FRP grille are: yellow, black, gray, green, blue, red, transparent or translucent, etc. In the process of use, you can use a single color or match it.
Strong designability
The size is flexible and diverse, convenient for cutting and stable
