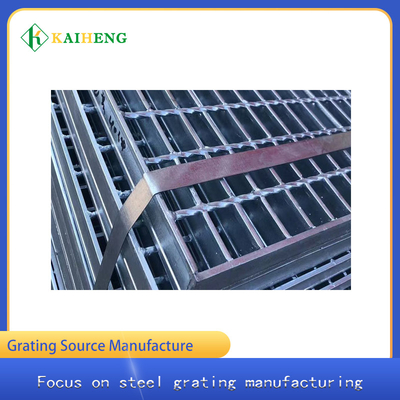

I Shaped Steel Metal Grating Grid Walkway

I-shaped steel grating plate good bearing capacity corrosion-resistant I-shaped steel grating

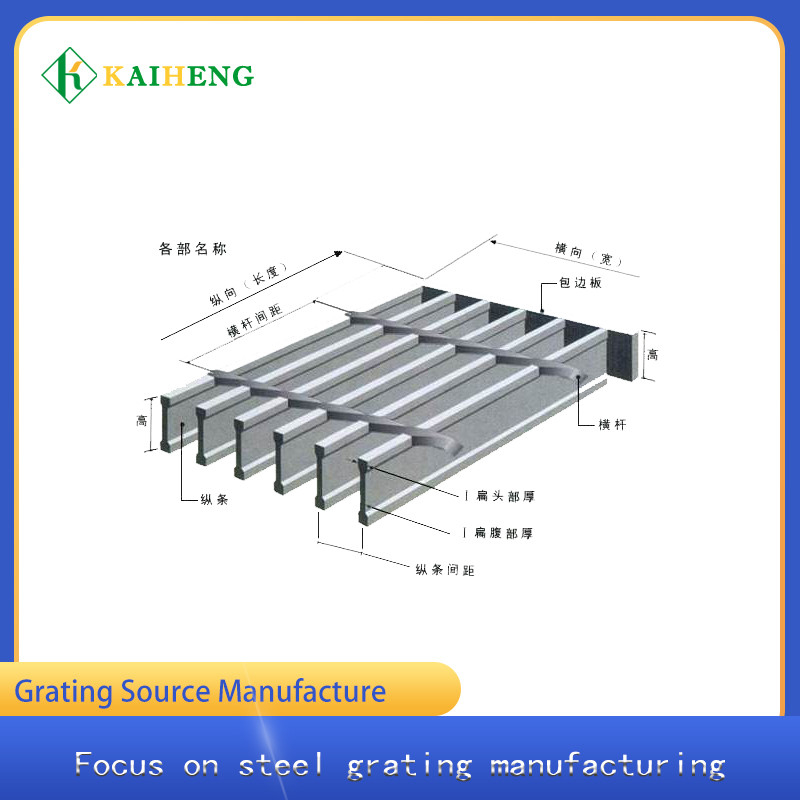

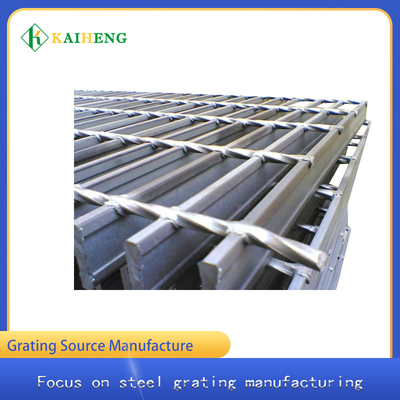

I-shaped steel grating, also known as I-shaped steel grating, is flat steel with I-shaped shape. I-shaped steel grating has large load-bearing and light weight. The surface treatment of I-shaped steel grating is generally hot-dip galvanized. I-shaped steel plate has I-shaped flat steel and cross bar twist steel (I-shaped flat steel) cross welded fixed, square lattice products. Dimension drawing of I-shaped flat steel:

The spacing of I-shaped steel grating is divided into three series:
Series 1 (spacing 30mm) I-shaped steel grating is a commonly used product used in various industrial fields. The center distance of loaded flat steel of this series of I-shaped steel grating is 30mm, which meets the provisions of American standards. In the whole I-shaped steel grating series, it has strong resistance to surface impact. It is widely used in power plants, refineries, sewage treatment plants, granaries, chemical plants, highways, airports, wharfs and other platforms, walkways and drainage ditch covers, stair steps and so on. The toothed steel grating can be used in wet and greasy places, especially for offshore oil production platforms.

Series 2 (spacing 40mm) I-shaped steel grating is the most economical and portable type, which meets the specifications of fixed platforms, walkways and stairs specified in British standards. It is the most ideal product in the case of small span. It is no exception even under the load of transportation equipment walkways. It can also be used as shelves of warehouses, panels of pavilions, trestles, protective fences, sun curtains, etc.
Series 3 (spacing 60mm) I-shaped steel grating is a variety developed especially for the application of mining industry. It solves the problem of mineral splashing on the plate surface. This series of I-shaped steel grating has a nominal size of 50 * 60MM, which allows most splashed materials to pass through, so as to ensure the cleanness and safety of the plate surface. This product is often designated for the plate surface in the crushing system, walkways on the conveying line, ball mills, processing plants and operation stations.
