Product Details:
|
| Material: | Carbon Steel Or Asrequired | Color: | Silver |
|---|---|---|---|
| Size: | As Required | Surface: | Hot Dip Galvanizing |
| High Light: | Galvanised serrated bar grating,serrated bar grating Grid,Sewage galvanised steel grating |
||
| name | toothed grid |
| material | carbon steel as required |
| color | silver |
| surface treatment |
galvanized or plastic dipping |
| scope of application | chemical plant, sewage plant, boiler room coal mine municipal |
| origin place | anping hebei China |
| function | load bearing and anti-skid |
| transport | shipping |

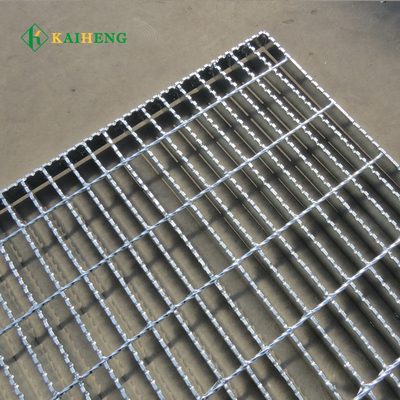

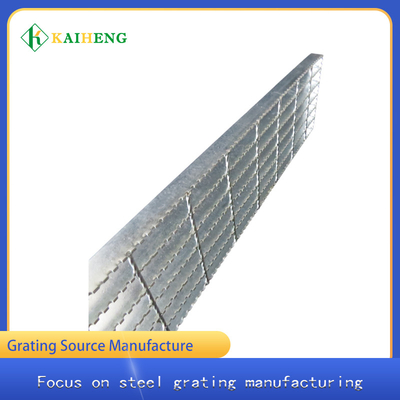

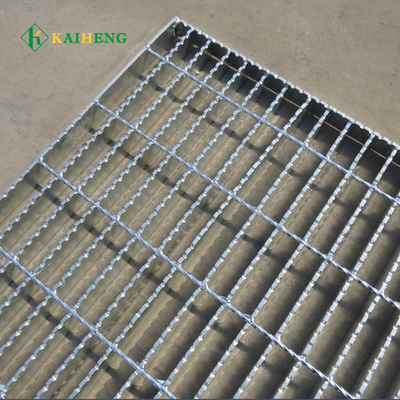

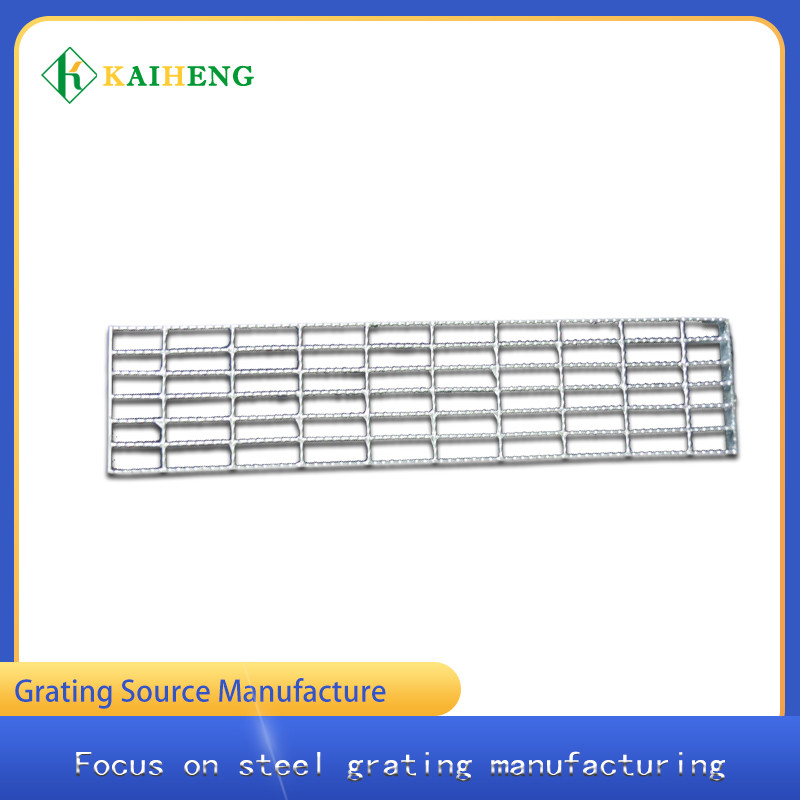

The toothed steel grid is welded by flat steel with serration on one side, which has strong anti-skid ability. It is especially suitable for wet and greasy places and oil production platforms. However, its price is high. Please consider the cost when purchasing. The serrated steel grating adopts hot-dip galvanized surface treatment, which has strong anti rust power and is free of maintenance and replacement for 30 years.
| Series one | Series two | Series three | ||
| 203/30/100 | 203/30/50 | 203/40/100 | 203/40/50 | |
| 253/30/100 | 253/30/50 | 253/40/100 | 253/40/50 | |
| 254/30/100 | 254/30/50 | 254/40/100 | 254/40/50 | 254/50/60 |
| 255/30/100 | 255/30/50 | 255/40/100 | 255/40/50 | 255/50/60 |
| 303/30/100 | 303/30/50 | 303/40/100 | 303/40/50 | 303/50/60 |
| 353/30/100 | 353/30/50 | 353/40/100 | 353/40/50 | 353/50/60 |
| 304/30/100 | 304/30/50 | 304/40/100 | 304/40/50 | 304/50/60 |
| 354/30/100 | 354/30/50 | 354/40/100 | 354/40/50 | 354/50/60 |
| 305/30/100 | 305/30/50 | 305/40/100 | 305/40/50 | 305/50/60 |
| 355/30/100 | 355/30/50 | 355/40/100 | 355/40/50 | 355/50/60 |
| 403/30/100 | 403/30/50 | 403/40/100 | 403/40/50 | 403/50/60 |
| 453/30/100 | 453/30/50 | 453/40/100 | 453/40/50 | 453/50/60 |
| 404/30/100 | 404/30/50 | 404/40/100 | 404/40/50 | 404/50/60 |
| 454/30/100 | 454/30/50 | 454/40/100 | 454/40/50 | 454/50/60 |
| 405/30/100 | 405/30/50 | 405/40/100 | 405/40/50 | 405/50/60 |
| 455/30/100 | 455/30/50 | 455/40/100 | 455/40/50 | 455/50/60 |
| 503/30/100 | 503/30/50 | 503/40/100 | 503/40/50 | 503/50/60 |
| 504/30/100 | 504/30/50 | 504/40/100 | 504/40/50 | 504/50/60 |
| 554/30/100 | 554/30/50 | 554/40/100 | 554/40/100 | 554/50/60 |
| 505/30/100 | 505/30/50 | 505/40/100 | 505/40/50 | 505/50/60 |
| 555/30/100 | 555/30/50 | 555/40/100 | 555/40/50 |
555/50/60 |
Our grating products are widely used in petroleum, chemical plants, power plants, sewage treatment plants, garages, walkway platforms, boiler plants, maintenance / repair plants, parking plants, ports, electric power, transportation, steel, steel structure platforms and other fields.
(1) High strength, light structure
(2) Strong corrosion resistance and durability
(3) Beautiful appearance and bright surface
(4) No dirt, rain, snow, ponding, self-cleaning and easy maintenance
(5) Ventilation, daylighting, heat dissipation, anti-skid, good explosion-proof performance
(6) Convenient for installation and disassembly
