Product Details:
|

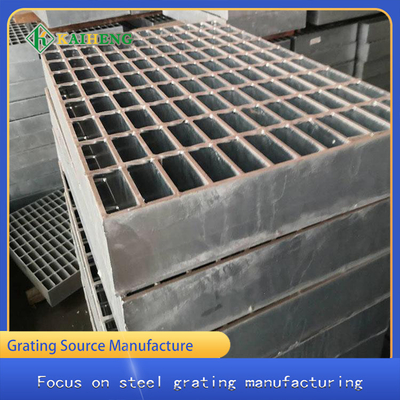

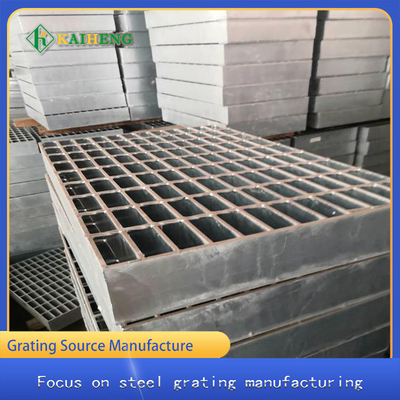

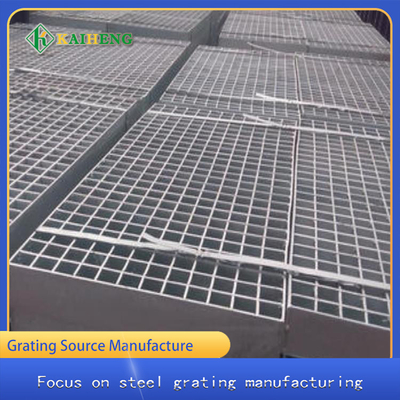

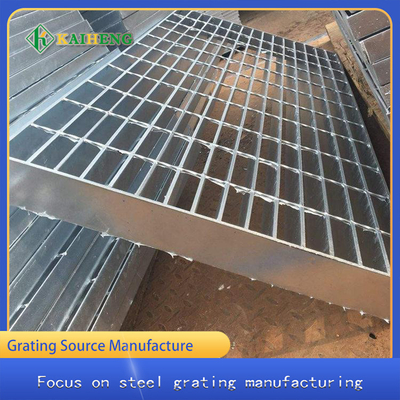

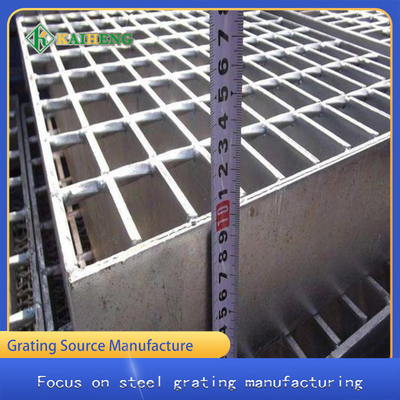

| Specification: | G1008/40/100FG | Product Name: | G1008/40/100FG Heavy Duty Steel Grating |
|---|---|---|---|
| Origin Area: | Anping,Hebei,China | Material: | Q235 Q135 Etc. Or As Your Required |
| Grid Color: | Silver White,self Color, | Surface: | Hot Galvanizing, Or Untreatment |
| Bearing Bar Pitch: | 40mm | Cross Bar Pitch: | 100mm |
| Bearing Bar: | 100mm*8mm | Cross Bar Size: | 8.8mm |
| Performance: | Beautiful , Light Structure，corrosion Resistant, Durable | Packing: | As Customized |
| Standard: | YB/T 4001.1-2019 Or As Required | ||
| High Light: | G1008 floor forge walkway,floor forge walkway Grated,G1008 grated metal floor |
||
In order to improve efficiency, large grain depots will use trucks of hundreds of tons for unloading. If it takes a lot of time to manually pour grain to the warehouse or machinery, large grain depots will directly set up suspended heavy-duty steel gratings in the unloading area of grain depots. Large trucks can directly drive into the unloading area and dump directly, and then the grain will leak directly from the grid hole. After unloading, the truck will drive away directly. In the unloading process, The grain is dumped into the warehouse. This makes full use of the bearing performance and compressive performance of heavy grid plate and the characteristics of grid leakage.
| name |
G1008 / 40 / 100FG heavy steel grating |
| color | silver |
| material | carbon steel q235 or as your required |
| surface | hot dip galvanized,or no treatment |
| performance | Huge bearing capacity and Material leakage |
| standard | iso9001 |
| transport | shipping |
| type | G1008/40/100FG |
| application | Unloading area of grain depot |
| bearing bar model | Flat steel |
G1008 / 40 / 100 heavy-duty steel grating customers not only have the performance of ordinary steel grating, but also customize the heavy-duty steel grating by the client, which mainly uses its huge bearing performance. For example, in the unloading area, hundreds of tons of trucks unload materials on it, and the materials directly enter the bottom warehouse and leak directly from the grid hole, saving the time cost and dumping cost of factory materials.
Heavy steel gratings are usually not in stock in the factory, and customers order instant production. If you need to order g1008 / 40 / 100fg heavy-duty steel gratings, you can specify the requirements and send them to our special email: info@cnkaiheng.com . Heavy load steel grating involves a large amount of money. You are also welcome to visit our factory by remote video or visit our factory. I work in the factory every day.
