Product Details:
|
| Name: | G808/40/100 Heavy Steel Grid | Material: | Carbon Steel Q235 |
|---|---|---|---|
| Color: | Silver | Performance: | High Load Ability |
| Surface Treatment: | Hot Dip Galvanizing Or No Treatment | Standard: | Iso9001 |
| Bearing Bar: | 80mm*8 | ||
| High Light: | G808 heavy duty metal floor grates,Q235 heavy duty metal floor grates,G808 heavy steel grate |
||

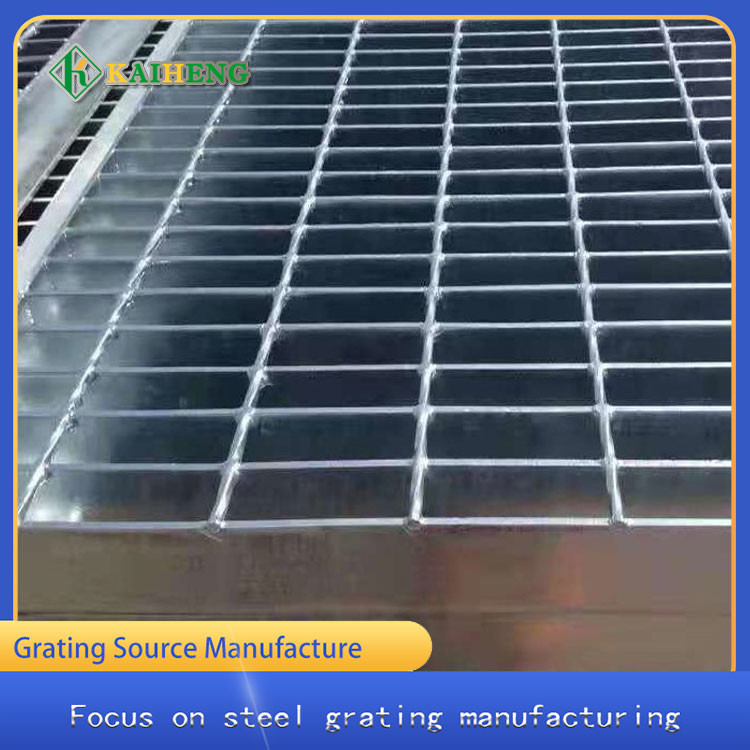

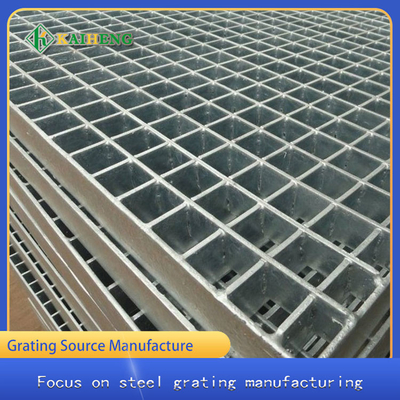

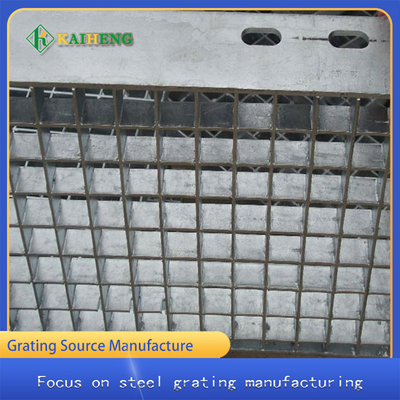

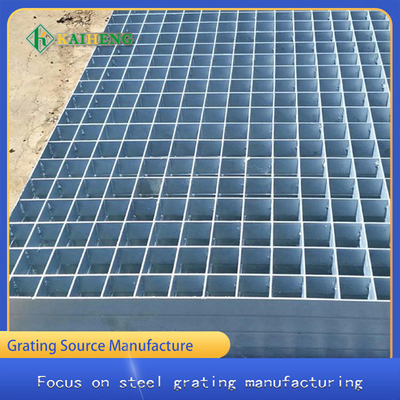

G808 / 40 / 100fg steel grating plate adopts plane hot-dip galvanized steel grating plate with flat steel section of 80mm * 8mm and flat steel spacing and cross bar spacing of 40mm and 100mm respectively. The flat steel and cross bar are welded together under the action of high current and high voltage of large pressure welding machine. Finally, after manual welding and edging, it is polished, derusted and hot-dip galvanized to become metal grid plate, This metal grid plate not only shows pressure bearing capacity, but also has corrosion resistance.
| name |
G808/40/100 type heavy steel grating |
| material | carbon steel q235 |
| color | silver white |
| surface treatment | hot dip galvanizing |
| performance | high load ability |
| bearing bar size | 80mm*8mm |
| bearing bar pitch | 40mm |
| cross bar size | 8.8mm |
| cross bar pitch | 100mm |
| standard | ISO9001 |
This heavy-duty steel grating is a kind of metal plate that is specialized in solving the unloading problem of large trucks, such as tens of tons or hundreds of tons of trucks. After unloading, the materials will automatically leak from the grid hole to the warehouse for storage, improving efficiency and saving cost. In addition, heavy-duty grating plates will also be used in large ports, docks, working platforms, airports and other scenes. All make use of its excellent bearing performance.
Kaiheng steel grating is a company specializing in the manufacture of steel grating. We can provide customers with personalized customized services and customize heavy steel grating. We can express your needs to our online customer service, and then we can provide you with quotation. The charging mode we adopt is deposit + balance payment. The specific payment and delivery procedures will be communicated again.
